2025 September: Swift+ Application Programing Interface (API) Release

Description of API Features Now Available in the Swift+ APIs

Release Feature Highlights

Click the workflow link below to scroll straight to that section.

  • Seven (7) Enhancements
    • Billing (2)
      • Endpoints provide data corresponding to ARB100D1 (NOI.dat FTP data) & ARB135D2 (ADD.dat FTP data)

      • New endpoint created: GetTransportationInvoicePayments

    • Inventory (4)

      • New endpoint created: GetProductTransferOrders

      • Modifications to

        GetBookingHistory & GetBookingHistoryUpdates

    • Loading (1)

      • New endpoint created: GetCarrierAuthorizations

ENHANCEMENTS

BILLING LIBRARY (Two Enhancements)

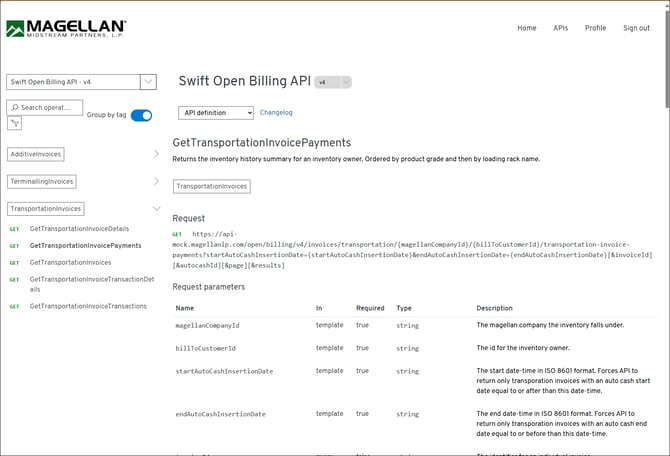

  • ONE: New endpoint: GetTransportationInvoicePayments V4.
    • This endpoint provides corresponding data from the Refined Products' ARB100D1 Report & NOI.dat FTP Data.

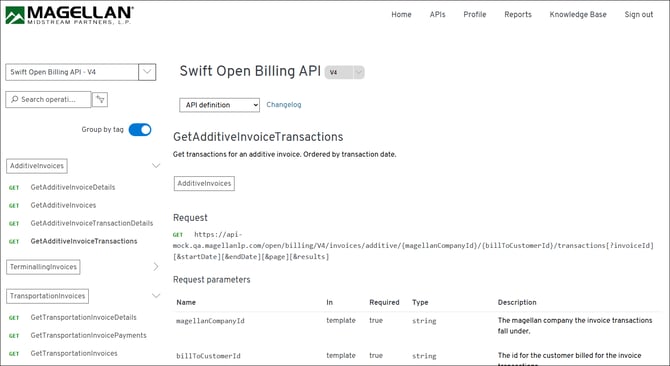

  • TWO: Modify the endpoint: GetAdditiveInvoiceTransactions V4.
    • This endpoint provides corresponding data from the Refined Products'

      ARB135D2 Report & NOI.dat FTP Data. MAGELLAN® Home APIs Profile Reports Knowledge Base Sign out MIDSTREAM PARTNERS, L. P. Swift Open Billing API - V4 V Swift Open Billing API V 4 V O Search operati ... API definition Changelog Group by tag GetAdditiveInvoiceTransactions Get transactions for an additive invoice. Ordered by transaction date. AdditiveInvoices > GET GetAdditiveInvoiceDetails AdditiveInvoices GET GetAdditiveInvoices GET GetAdditiveInvoiceTransactionDetails Request GET GetAdditiveInvoiceTransactions GET https://api- mock.qa.magellanlp.com/open/billing/V4/invoices/additive/{magellanCompanyId}/{billToCustomerId}/transactions[?invoiceId] [&startDate ] [&endDate] [&page ] [&results] A TerminallingInvoices Request parameters TransportationInvoices Name In Required Type Description GET GetTransportationInvoiceDetails magellanCompanyId template true string The magellan company the invoice transactions GET GetTransportationInvoicePayments fall under. GET GetTransportationInvoices billToCustomerId template true string The id for the customer billed for the invoice

INVENTORY LIBRARY (Four Enhancements)
  • ONE and TWO: Modify GetBookingHistory V3 and GetBookingHistoryUpdates V3. This now adds the Carrier Details Name, FEIN and SCAC code."carrier": { "name": "Carrier1Name", "fein": "01234", "scac": "ABC"

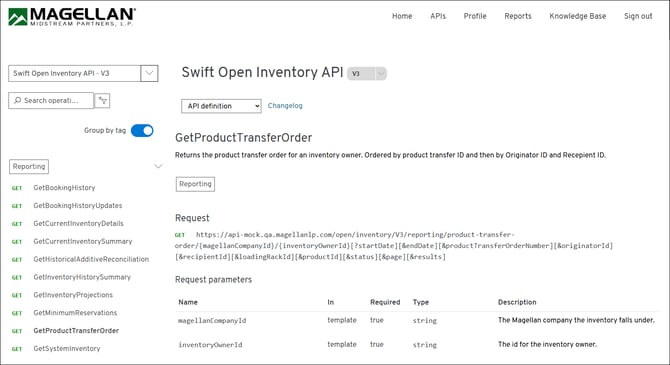

  • THREE: New endpoint GetProductTransferOrders V3MAGELLAN® Home APIs Profile Reports Knowledge Base Sign out MIDSTREAM PARTNERS, L. P. Swift Open Inventory API - V3 Swift Open Inventory API V3 O Search operati ... API definition Changelog Group by tag GetProductTransferOrder Returns the product transfer order for an inventory owner. Ordered by product transfer ID and then by Originator ID and Recepient ID. Reporting > GET GetBookingHistory Reporting GET GetBookingHistoryUpdates GET GetCurrentInventoryDetails Request GET GetCurrentInventorySummary GET https://api-mock.qa.magellanlp.com/open/inventory/V3/reporting/product-transfer- order/{magellanCompanyId} /{inventoryOwner Id} [ ?startDate] [&endDate] [&productTransferOrderNumber] [&originatorId] GET GetHistoricalAdditiveReconciliation [&recipientId] [&loadingRackId] [&productId] [&status][&page][&results] GET GetInventoryHistorySummary Request parameters GET GetInventoryProjections Name In Required Type Description GET GetMinimumReservations magellanCompanyId template true string The Magellan company the inventory falls under. GET GetProductTransferOrder GET GetSystemInventory inventoryOwnerId template true string The id for the inventory owner.
  • FOUR: Modify GetInventoryHistorySummary V3.1 to include 'volumeLoadable'

LOADING LIBRARY (One Enhancement)

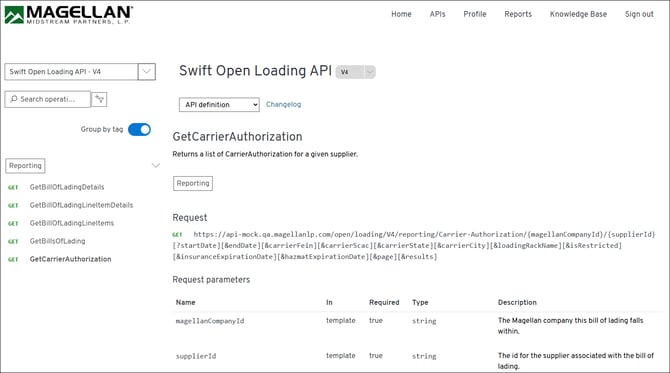

  • ONE:  New endpoint GetCarrierAuthorizations V4
    MAGELLAN® Home APIs Profile Reports Knowledge Base Sign out MIDSTREAM PARTNERS, L.P. Swift Open Loading API - V4 Swift Open Loading API V4 O Search operati ... API definition Changelog Group by tag GetCarrierAuthorization Returns a list of CarrierAuthorization for a given supplier. > Reporting GET GetBillOfLadingDetails Reporting GET GetBillOfLadingLineltemDetails Request GET GetBillOfLadingLineltems GET https://api-mock.qa.magellanlp.com/open/loading/V4/reporting/Carrier-Authorization/{magellanCompanyId}/{supplierId} GET GetBillsOfLading [? startDate] [&endDate] [&carrierFein] [&carrierScac] [&carrierState] [&carrierCity] [&loadingRackName] [&isRestricted] GET GetCarrierAuthorization [&insuranceExpirationDate] [&hazmatExpirationDate] [&page] [&results] Request parameters Name In Required Type Description magellanCompanyId template true string The Magellan company this bill of lading falls within. supplierId template true string The id for the supplier associated with the bill of lading.
